Extron WAP 100AC 1000 Mbit/s White Power over Ethernet (PoE)

£534.04 excl. VAT

Extron WAP 100AC 1000 Mbit/s White Power over Ethernet (PoE)

Product code: 60-1635-11

Extron WAP 100AC 1000 Mbit/s White Power over Ethernet (PoE)

Product code Alt: 60-1635-11

Product Description

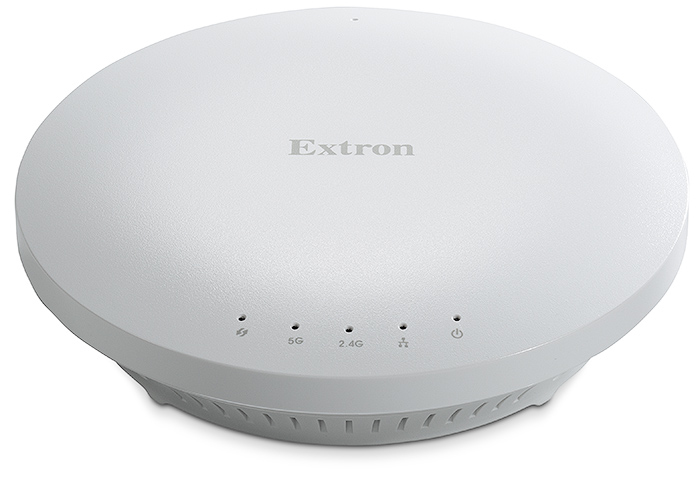

The Extron WAP 100AC is a ceiling mounted dual-band wireless access point engineered for heavy network traffic and demanding business environments. It supports the latest wireless technologies, including dual-band frequency operation with Band Steering, high-transmit power, enhanced receive sensitivity MIMO, and four internal high-gain antennas that all help maximize network performance and expand device network connectivity. The WAP 100AC also supports the latest PoE+ standards, allowing it to receive power and communication over a single Ethernet cable. The WAP 100AC is ideal for providing wireless access to devices running the Extron Control App.

For the list of regions licensed to use this product, please see the specifications tab.

Specifications

Data transmission
Maximum data transfer rate	1000 Mbit/s
Performance
2.4 GHz	Yes
5 GHz	Yes
Bandwidth	5 GHz
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Certification	CE, c-UL, UL, CE, FCC Class B, ICES, RoHS, WEEE
Maximum data transfer rate	1000 Mbit/s
Internal memory	128 MB
Flash memory	16 MB
Network
Internal	No
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Bandwidth
Bandwidth	5 GHz
Security
Cable lock slot	Yes
Security algorithms	WEP, WPA-Enterprise, WPA-PSK, WPA2-Enterprise, WPA2-PSK
Memory
Internal memory	128 MB
Flash memory	16 MB
Features
2.4 GHz	Yes
5 GHz	Yes
Bandwidth	5 GHz
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Maximum data transfer rate	1000 Mbit/s
Maximum data transfer rate (5 GHz)	867 Mbit/s
Internal memory	128 MB
Flash memory	16 MB
Ports & interfaces
USB 2.0 ports quantity	0
Ethernet LAN (RJ-45) ports	1
Power
Power consumption (typical)	15.77 W
Power over Ethernet (PoE)	Yes
Input current	2 A
Heat dissipation	53.82 BTU/h
AC input voltage	12 V
Design
Placement	Ceiling, Wall
Product colour	White
Internal	No
LED indicators	LAN, Power, WAN, WPS
Certification	CE, c-UL, UL, CE, FCC Class B, ICES, RoHS, WEEE
Cable lock slot	Yes
Cable lock slot type	Kensington
Antenna
Antenna gain level (max)	26 dBi
Technical details
Harmonized System (HS) code	85176990
Certificates
Certification	CE, c-UL, UL, CE, FCC Class B, ICES, RoHS, WEEE
Indication
LED indicators	LAN, Power, WAN, WPS
Weight & dimensions
Width	161.5 mm
Depth	161.5 mm
Weight	280 g
Height	41.7 mm
Operational conditions
Operating relative humidity (H-H)	10 - 90%
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-20 - 60 °C
Storage relative humidity (H-H)	10 - 90%
Logistics data
Harmonized System (HS) code	85176990
