Extron PC 101 1 AC outlet(s) Black

£290.68 excl. VAT

Extron PC 101 1 AC outlet(s) Black

Product code: 60-1378-01

Extron PC 101 1 AC outlet(s) Black

Product code Alt: 60-1378-01

Product Description

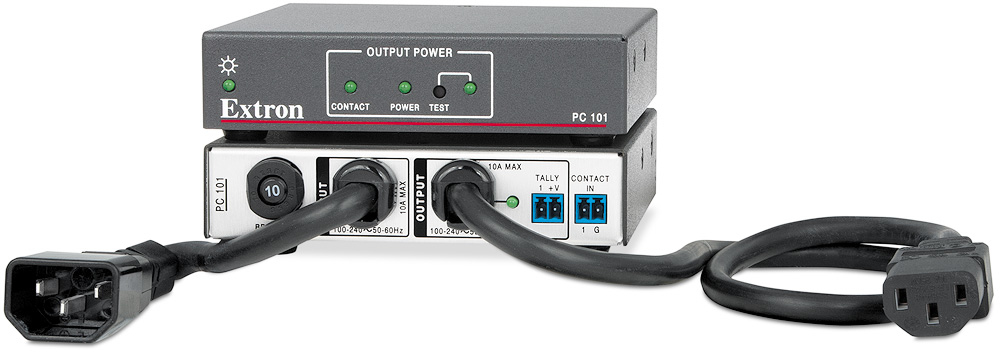

The Extron PC 101 is a one input, one output AC power controller designed to provide remote power management for AV devices. When paired with a controller or control processor equipped with relays, such as the MediaLink MLC 226 IP or IP Link IPL 250, the PC 101 can be configured to turn a device ON or OFF at scheduled times for security and energy savings purposes. It features a contact closure control input and tally output which can be used for visual feedback. The slim, compact form factor and IEC connectors on pigtails enable convenient in-line use with other devices and discreet mounting behind displays or other equipment. The PC 101 has a power rating of 100-240 VAC, 50/60 Hz, allowing for worldwide compatibility.

Specifications

Power
Current loads per port (max)	10 A
Power consumption (no load)	1.9 W
Heat dissipation (no load)	2.9 BTU/h
Technical details
Material	Metal
Product colour	Black
Input voltage	100 - 240 V
Input frequency	50 - 60 Hz
Current loads per port (max)	10 A
AC outlets quantity	1 AC outlet(s)
LED indicators	Yes
Safety	CE, c-UL, UL
Certification	CE, C-tick, FCC Class A, ICES, VCCI
Ports & interfaces
AC outlets quantity	1 AC outlet(s)
AC outlet types	IEC Jumpers
AC inlets quantity	1
AC inlet types	IEC Jumpers
Weight & dimensions
Weight	400 g
Dimensions (WxDxH)	109 x 102 x 25 mm
Rack capacity	1U
Width	109 mm
Height	25 mm
Depth	102 mm
Package weight	700 g
Operational conditions
Storage temperature (T-T)	-40 - 70 °C
Storage relative humidity (H-H)	10 - 90%
Operating temperature (T-T)	0 - 45 °C
Operating relative humidity (H-H)	10 - 90%
